Product Details:
|
| Material: | Q235 Steel | Type: | Scaffolding Prop System |
|---|---|---|---|
| Finish: | Original, Elctro Galvanized,HDG | Certificate: | CMA |
| Color: | Black,silver Or Golden | Application: | Adjust The Height Of Steel Props |
| High Light: | Prop Sleeve Steel Scaffolding Prop Parts,400mm Steel Scaffolding Prop Parts,400mm Scaffolding Prop Sleeve |
||

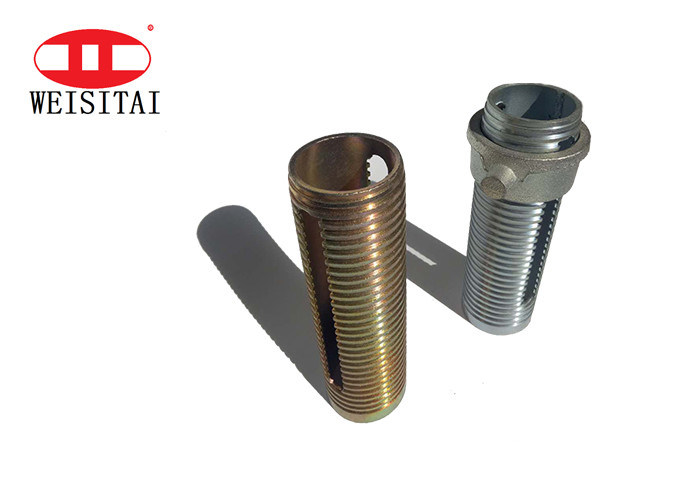

Steel Scaffolding Prop Parts Prop Sleeve For Shuttering Jacks
◆Product Overview
Used in fitting of scaffolds, these are suitable for pipers of 60.3 mm OD with a thickness ranging between 3.0 to 4.0 TPI threading.
To enhance resistance of Prop Sleeve,these are electroplated with high grade material.
Our enterprise has gained immense recognition in offering optimum quality Prop Sleeve. Used in various scaffolding applications, the offered prop sleeve is known for its application specific design. It is examined on various quality parameters before delivering in the market to ensure its high durability and flawless working. In addition to this, the offered product is made available with us at rock bottom prices.
◆Product Parameter
| Material: Q235 Steel | |||||
| Finish:Original , Electro Galvanized,HDG | |||||
| Color:Original Self Color, Silver or golden color | |||||
| Craft: Rolling thread or CNC thread | |||||
| Strength:40-65KN | |||||
| Application: Connect the inner pipe and outer pipe of steel props | |||||
| Diameter | 60mm | Thickness | 2.5/3/3.5mm | Length | 195-400mm |
| Remark: 1. For items 3.5MM thick or thicker , CNC craft is ok, for items less than 3.5MM,threading machine is ok 2.OD76MM prop sleeve is also available,it’s with CNC thread,4MM or 5MM thick |
|||||
◆Product Advantage
A.Good Capacity:Q235 steel raw material, Up to 6.5 tons
B.Exported to many countries: such as Korea,Thailand,Philippine,Bangladesh etc.
C.Thread: Both machine thread and rolled thread are available
D.Various types: various shape and size, match all your needs
◆Product Test
Tested Product:Steel Prop Sleeve Set OD60*3*220MM
Test Institute:Product Quality Supervision And Inspection Institute
Test Result:When the load reaches 60Kn, the pin bend, the prop sleeve slips
