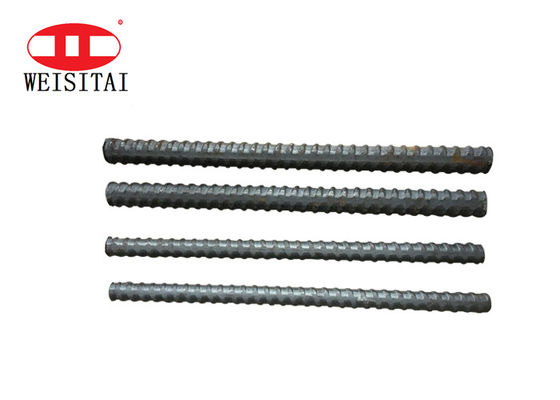

Hot rolled Dywidag 17mm Formwork Tie Rod System

Hot rolled Dywidag 17mm Formwork Tie Rod System
Hot rolled Dywidag 17mm Formwork Tie Rod System Hot rolled Dywidag 17mm Formwork Tie Rod System

Large Image :  Hot rolled Dywidag 17mm Formwork Tie Rod System

Product Details:
Place of Origin: China
Brand Name: WST
Certification: CMA ISO
Model Number: TR006
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Price Negotiation
Packaging Details: by woven film , 10pcs per bundle
Delivery Time: 20-30days
Payment Terms: L/C,T/T,Western Union,Alibaba trade assurance
Supply Ability: 800meters/day

Hot rolled Dywidag 17mm Formwork Tie Rod System

Description
Material: PSB830 Craft: Hot Rolled
Weight: 1.47KG/M Diameter: 15/17mm
Screw Pitch: 10mm Application: Concrete Construction
High Light:

17mm Formwork Tie Rod System

,

Dywidag Formwork Tie Rod System

,

17mm Dywidag Tie Rod

Hot Rolled Formwork 15/17mm Dywidag Tie Rod For Building Construction



Product Overview



Tie rod refers to the component used to support and fix the formwork in engineering construction. It is composed of tie rod,plate,wing nut and other accessories.



The screw is used to tie the wall and the outer formwork,bear the lateral pressure of the concrete and other loads, to ensure that the distance between the inner and outer formwork can meet the design requirements, but also the fulcrum of the formwork and its supporting structure. Therefore, the arrangement of tie rod has a great influence on the integrity, rigidity and strength of the formwork structure.



Product Parameter



Tie rod types Half thread Tie rod
Pics Hot rolled Dywidag 17mm Formwork Tie Rod System 0
Material PSB830
Diameter 15/17mm
Pitch 10mm
Length 1-6m
Weight 1.47kg
Finish Natural
Color Original self color
Craft hot rolled
Strength 180-190KN
Other name Formwork dywidag tie bar,Formwork tie bar system



Product Advantage



1.Rolling wire:High-precision thread rolling



2.Cut off:Ensure the specifications of each workpiece



3. Various material: Q235 steel, 45# steel and PSB830 hot rolled steel are all available



4. High Stength: from 4.5ton to 20tons, we could supply test report for checking



Product Test



Tested Product: PSB830 15/17mm Tie Rod



Test Institute:Product Quality Supervision And Inspection Institute



Test Result:The formwork tie rod breaks at 183KN,the formwork tie nut keep well

Hot rolled Dywidag 17mm Formwork Tie Rod System 1

Hot rolled Dywidag 17mm Formwork Tie Rod System 2
