Product Details:
|
| Material: | 45#steel | Weight: | 0.19/ 0.34kg,etc. |
|---|---|---|---|
| Colour: | Black,silver, Yellow | Surface Treatment: | Natural, EG,HDG |
| Match Tie Rod: | 12/17/20MM Or Customized | Pull: | 150- 180KN |
| High Light: | 45# Steel Hex Nut,D17 Steel Hex Nut,Formwork Steel Hex Nut |
||

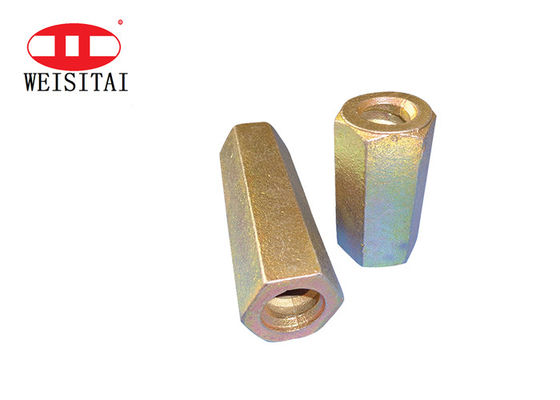

D17 Construction Galvanized Cast Steel Hex Nut
◆Product Overview
Hex nut is used as normal fasteners together with washer plate; Some times used as steel bar couplers, connecting two bars in the reinforcement work. When used as coupler, usually a stop-pin is fixed in the middle of the nut, in order to secure the screwed length of the bar.
We have wing nut,swivel nut/combination nut,anchor nut ,waller plate with nut
With different size and weight,we can also make them according to your drawing or sample.
◆Product Parameter
| Tie nut types | Formwork hex nut |
| Sample |  |
| Material | 45#steel |
| Match tie rod | 12/17/20MM or customized |
| Weight | 0.19/0.34kg,etc. |
| Heat treatment | Depends on customers |
| Surface treatment | Natural,EG,HDG |
| Process | Casted iron |
| Pull | 150-180KN |
◆Product Advantage
1. Various types,match different tie rods.
2. Safe and high strength:the strength of our formwork tie nut is bigger than tie rod
3. All range: we could produce all kinds of casting tie nuts,such as wing nut, water stopper etc.
◆Product Test
Tested Product:Formwork hex nut
Test Institute:Product Quality Supervision And Inspection Institute
Test Result:When it arrives to 170.72KN, the tie rod breaks and the shape of the formwork hex tie nut keep well
