Product Details:
|
Product Name: | Scaffolding Casting Shoring Prop Nut | Diameter: | 60/76MM |
---|---|---|---|
Weight: | 0.75/0.85kg | Material: | Ductile Iron (QT450) |
Surface Treatment: | Nutural, Galvanized, HDG | Colour: | Self Color, Silver, Golden |
Parts: | Steel Scaffolding Prop Parts | Certificate: | SGS |
Process: | Casting | Application: | Adjust The Height Of Steel Props |
High Light: | prop scaffolding nut,HDG scaffolding nut,60mm scaffolding nut |
Scaffolding Casting Shoring Prop Nut Steel Scaffolding Prop Parts
◆Product Overview
Steel scaffolding prop parts is a type of scaffolding parts and formwork support in construction with scaffolding props components and parts of Prop nut, prop inner tube and outer tube, base plate and top plate as well as prop pins in G shape and straight type.

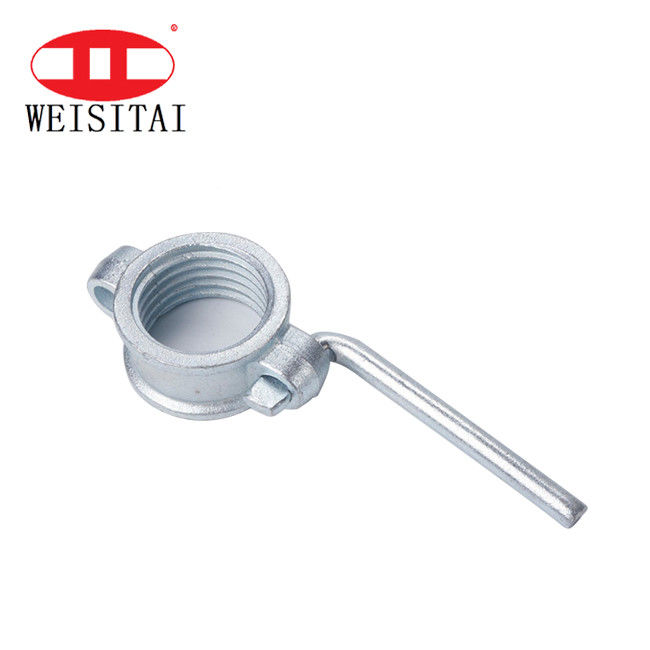

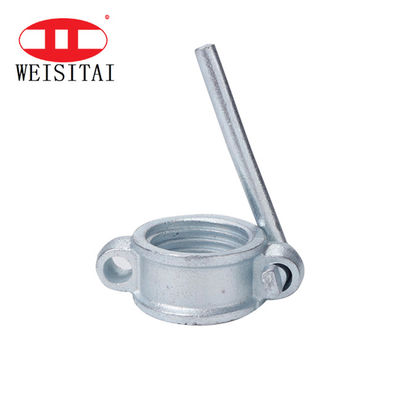

Scaffolding prop nut can be forged or cast according to clients requirement. This type of prop nut is cast iron with solid handle for heavy duty scaffolding props that match up prop outer tube in OD60mm sizes with inner threaded.
WST Scaffolding Prop Sleeve System including prop sleeve, prop nut and prop chain. They are usually used to adjust the height of the steel shore prop, and the prop sleeve items usually match outside pipes of OD60mm and inner pipes of OD48mm. Customized size of prop sleeve and customeized shape of prop nut are both avaliable.
◆Product Parameter
Prop Nut | |||
Material |
Ductile casted iron QT450-10 |
Ductile casted iron QT450-10 |
Ductile casted iron QT450-10 |
Color |
Self Color, silver, golden |
Self Color, silver, golden |
Self Color, silver, golden |
Diameter | 60/76MM | 60/76MM | 60/76MM |
Weight | 0.41kg | 1.25kg |
0.75kg /0.85kg |
Surface treatment |
Nutural, Galvanized, HDG |
Nutural, Galvanized, HDG |
Nutural, Galvanized, HDG |
Application |
Adjust the height of steel props |
Adjust the height of steel props |
Adjust the height of steel props |
◆Product Advantage
1. The structure of steel prop is simple, so it is easy to assemble and disassemble.
2. Steel scaffolding prop parts is adjustable because the inner tube can extend and shrink in the outer tube, so it can be adjusted according to the required height.
3. The steel scaffolding prop parts can be reused. Even though it is out of work, the material can also be recycled.
4. Steel scaffolding prop parts can be adjusted according to the different height of the constructions.
