Product Details:
|
| Product Name: | Q345 Steel 160KN Layer Scaffolding System Ring Lock Scaffolding Parts | Material: | Q235 |
|---|---|---|---|
| Surface Treatment: | Painted/Galvanized | Surface: | Hot Dipped Galvanized |
| Function: | Construction Material | Keyword: | Ringlock Scffolding |
| Size: | 48.3*2.75mm | Thickness: | 2.75mm |
| Advantage: | Stable,Antirust,Auto Welded | Application: | Building Construction |
| High Light: | q235 system scaffold components,hot dip galvanized system scaffold components,hdg steel ringlock scaffolding parts |
||

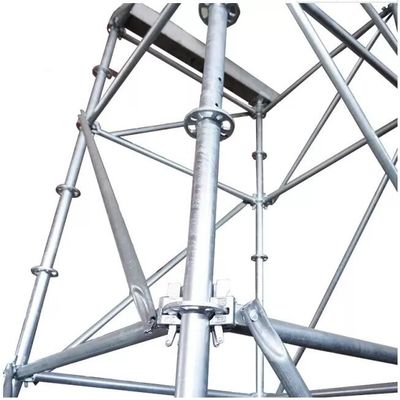

Q345 Steel 160KN Layer Scaffolding System Ring Lock Scaffolding Parts
◆Layer Scffolding System Product Overview
Layer scaffolding system is a modular scaffold system which is more safe and convenient, it can be divided into 48mm system and 60mm system. it is consist of standard, ledger, diagonal brace, jack base, u head and other components. Standard is welded by rosette with eight holes that four small holes to connect ledger and another four big holes to connect diagonal brace.
Ringlock Scaffolding System Include:Vertical pipe.Horizontal pipe.Diagonal Brace.Screw Jack.Workboard.Stair System and guard safe parts.It can be used for building protection.formwork support and building face decoration.
◆Layer Scffolding System Product Parameter
| Standard of Layer scaffold system sets | Thickness(mm) | Length(mm) | Diameter(mm) |
| standard a | 3.25 | 2500/3000 | 48/60 |
| standard b | 3.25 | 1500/2000 | 48/60 |
| standard c | 3.25 | 500/1000 | 48/60 |
| Horizontal of Layer scaffolding system sets | |||
| Horizontal a | 2.75 | 1800 | 48 |
| Horizontal b | 2.75 | 1200/1500 | 48 |
| Horizontal c | 2.75 | 600/900 | 48 |
◆Layer Scffolding System Product Advantage
1. Layer Scaffolding system Multi-function:
According to the specific construction requirement, it can be composed to single or double scaffolding, support frame and column, material lifting frame, climbing scaffolding, hanging frame and other functional construction equipment with different sets of size, shape and load-bearing capacity.
2. Layer Scaffolding system high efficiency:
Simple structure, easy assembly and disassemble, and it can avoid the bolts and scattered parts to lose, the joint assembly demolition speed is 5 times faster than conventional, assembly and disassembly are quick and effortless, and the workers can complete all operations with a hammer.
3. Layer Scaffolding system Safe and reliable:
To use the self-gravity, the connector can finish the double self-locking. The load power acting on the ledger is passed to the standard through the rosette, and this system has a strong anti-shear capacity (up to 199KN). The unique vertical diagonal brace instead of scissors support to correct the deviation. It can be connected from 8 directions with all of self-lock effect. In addition it can be set the aside cantilevered scaffolding.
4. Layer Scaffolding system Fast installation, convenient using, saving cost, saving labors:
Due to less quantity, light weight, workers can easily assembling and dismantling, easy to load and unload, easy to transport, easy to store. Erection cost, transportation cost, rental cost, maintenance cost will be saved 30% than traditional scaffolding system. Also it will save 2/3 labors than pipe and couplers system.
5. Layer Scaffolding system Longer service time:
The usage time of Ringlock Scaffolding is much longer than others, generally it can be used for more than 30 years, and the rust does not affect the use of assembly.
6. Layer Scaffolding system Demolition function:
The ledger can be removed in advance to flow, so to save materials and labor. It is truly economic and practical and can save energy and protect the environmental.
◆Layer Scffolding System Application
Building construction material, mainly for bridge, airport, metro(subway), house building and airplane maintance etc
◆Layer Scffolding System Details
◆Layer Scffolding System Packing & Shipping
For more details, just click here to download product catalog
