Product Details:
|
| Material: | Ductile Casted Iron QT450-10 | Inside Diameter: | 15/20mm Or Customized |
|---|---|---|---|
| Anchor Plate Diameter: | 60/65/66/70/90mm Or Customized | Height: | 86/110/112/113/150mm Or Customized |
| Surface Treatment: | Plain, Electrogalvanized | Application: | For Concrete Formwork Construction |
| High Light: | QT450 10 Cast Iron Water Stopper,WST formwork water stoppers |
||

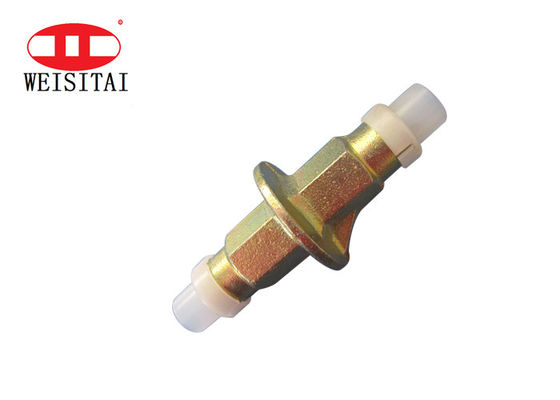

Cast Iron Water Stopper Tie Rod Formwork
◆Product Overview
Water stoppers are used in water retaining structures, casted into the concrete wall between two separate tie bars, to prevent water seeping alongside the thread bar. After pouring concrete, tie rods are removed, the water stop remains in concrete.
WST formwork water stoppers are used in water retaining structures. Cast into the concrete wall between two separate tie bars. After pouring, tie rods are removed, the water barrier remains in situ. Allow two reducers per water barrier. Our formwork water stopper has various size and shape, customized is also available.
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
◆Product Parameter
| Tie nut types | Water stopper |
| Sample |  |
| Weight | 0.18/0.42/0.47/0.52/0.54kg etc. |
| Pull | 150-180KN |
| Process | Casted iron |
| Surface treatment | Plain, electrogalvanized |
| Heat treatment | Depends on customers |
| Match tie rod | 15/20mm or customized |
| Material | Ductile casted iron QT450-10 |
| Colour | Plain, white galvanized color or galvanized color |
◆Product Advantage
1. Made of high quality ductile casted iron QY450-10, even stronger than steel.
2. Various styles, match different tie rods.
3.High strength, more than 180KN.
We have wing nut, swivel nut/combination nut, anchor nut, waller plate with nut.
With different size and weight, we can also make them according to your drawing or sample.
