Product Details:
|
| Material: | Q235 Or 45# Steel | Craft: | Cool Rolled |
|---|---|---|---|
| Surface Treatment: | Natural, Electro Galvanized,HDG | Color: | Natural, White Galvanized, Colorful Galvanized Color |
| Diameter: | 15/17mm | Screw Pitch: | 6.35mm |
| High Light: | 17mm Wall Tie Rod,Q235 Wall Tie Rod,Formwork Wall Tie Rod |
||

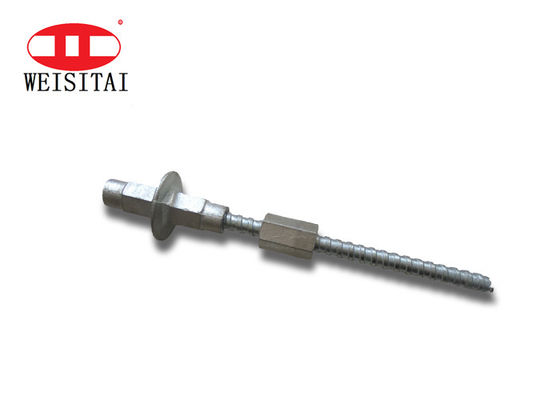

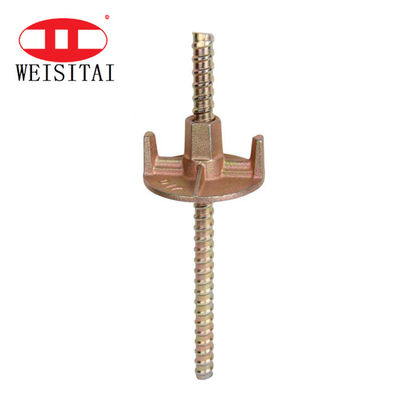

Scaffolding Formwork System #45 Steel 15/17mm Cross Wall Tie Rod
◆Product Overview
WST formwork system tie rods are made of Q235 steel or 45# steel and with self finish , galvanized finish or HDG finish. they are relatively strong in construction and used in industrial as well as housing sectors. With accurate dimension and high tensile strength, our tie rods have been exported to more than 33 countries. All formwork tie rod accessories also available in our factory.
◆Product Parameter
| Tie rod types | 17mm Tie Rod |
| Pics |  |
| Material | 45# steel |
| Diameter | 15/17mm |
| Pitch | 10/6.35mm |
| Length | 0-6m |
| Weight | 1.5kg |
| Finish | Natural , Electric galvanized |
| Color | Original self color, Silver,Golden |
| Craft | Cold rolled |
| Strength | 140-150KN |
| Other name | Tie Rod 16MM,Formwork tie bar,Formwork waterstop tie rod |
◆Product Advantage
1. Various size and finish:Match all your needs
2. Various material: Q235 steel, 45# steel and PSB830 hot rolled steel are all available
3. High Stength: from 4.5ton to 20tons, we could supply test report for checking
4. One stop purchase : we could produce full set of formwork tie rod accessories
◆Product Test
Tested Product: #45 Steel 15/17mm Tie Rod
Test Institute:Product Quality Supervision And Inspection Institute
Test Result:The formwork tie rod breaks at 143KN,the formwork tie nut keep well
