Product Details:
|
| Material: | Q235 Steel | Type: | Scaffolding Cuplock System |
|---|---|---|---|
| Color: | Self Color/galvanized | Size: | 60*2.5/3*200/210mm |
| Surface Treatment: | Galvanized Or Original | Application: | Adjust The Height Of Steel Props |
| High Light: | Q235 Steel Scaffolding Prop Parts,CNC Thread Steel Scaffolding Prop Parts,Q235 Steel Shoring Prop Sleeve |
||

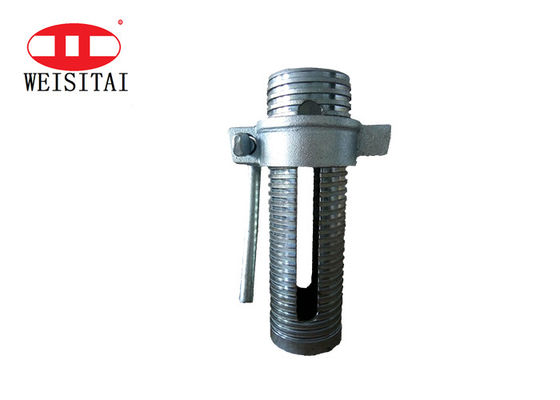

Galvanzied Steel Construction Scaffolding Prop Parts Adjustable Shoring Prop Sleeve And Nut
◆Product Overview
We have gained immense expertise in this business of manufacturing, supplying and exporting Prop Sleeve.
Our procurement agents source fine quality material to manufacture these sleeves in accordance with the international quality standards.
WST Scaffolding Prop Sleeve System including prop sleeve, prop nut and prop chain. They are usually used to adjust the height of the steel shore prop, and the prop sleeve items usually match outside pipes of OD60mm and inner pipes of OD48mm. Customized size of prop sleeve and customeized shape of prop nut are both avaliable.
◆Product Parameter
| Material: Q235 Steel Finish:Original , Painted, Electro Galvanized,HDG Color:Original Self Color, Silver or golden color Craft: Rolling thread or CNC thread Strength:40KN Application: Connect the inner pipe and outer pipe of steel props |
|||||
| Diameter | 60mm | Thickness | 2.5/3/3.5mm | Length | 150-400mm |
| Size and Weight | |||||
| Thickness2.5mm | Weight | Thickness3.0mm | Weight | Thickness3.5mm | Weight |
| Height 200mm | 0.58kg | Length 200mm | 0.72kg | Length 200mm | 0.78kg |
| Length 210mm | 0.62kg | Length 210mm | 0.76kg | Length 210mm | 0.83kg |
| Length 220mm | 0.65kg | Length 220mm | 0.80kg | Length 220mm | 0.888kg |
| Length 230mm | 0.68kg | Length 230mm | 0.83kg | Length 230mm | 0.93kg |
| Length 240mm | 0.71kg | Length 240mm | 0.86kg | Length 240mm | 0.98kg |
| Length 250mm | 0.74kg | Length 250mm | 0.90kg | Length 250mm | 1.02kg |
| Remark: 1. For items 3.5MM thick or thicker , CNC craft is ok, for items less than 3.5MM,threading machine is ok 2.OD76MM prop sleeve is also available,it’s with CNC thread,4MM or 5MM thick |
|||||
◆Product Advantage
1.Various types: various shape and size, match all your needs
2.Thread: Both machine thread and rolled thread are available
3.Good Capacity:Q235 steel raw material, Up to 6 tons
4.Exported to many countries: such as Korea,Thailand,Philippine,Bangladesh etc.
5.The structure is simple and it's easy to assemble and disassemble, so it can be reused.
6.It's for supporting concrete slab, beam, timber and formwork which is strong and reliable for interior building construction.
◆Product Test
Tested Product:Steel Prop Sleeve
Test Institute:Product Quality Supervision And Inspection Institute
Test Result:When the strength arrived to 60KN,the OD14MM Prop G pin bended,the prop sleeve slipped
