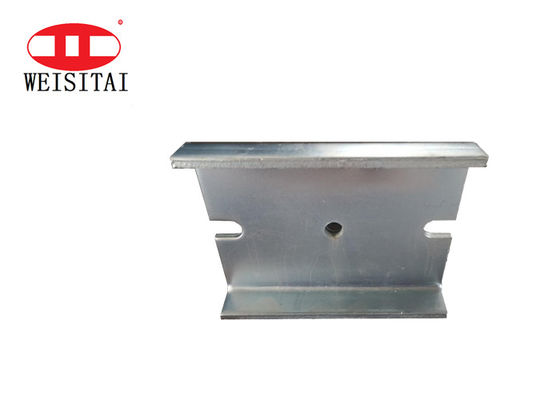

Adjustable Galvanized Steel U Head Plate Scaffold Pole Base Plate

Steel Construction Steel Scaffolding Parts Screw U Head Plate

◆Product overview

Scaffolding base plate can stabilize your scaffolding and provide support for scaffolding. The size can be customized, also different surface treatment (self finish, painted,galvanized, HDG )and colors are available.

◆Product Parameter

Adjustable U Head Plate (Hollow or Solid )
Picture	Tube diameter	30/32/34/38mm etc, Customized Diameter is OK
	Tube Length	100mm,150mm or customized
	Plate Size	120*120*50*4mm 120*120*50*5mm
		150*150*50*4mm 150*150*50*5mm etc, Customized Size is OK
	Solid or Hollow	Both solid item & hollow items are OK, for hollow items, the tube thickness is 4mm
	Hole on the tube or plate	Customized

◆Product Advantage

A. Various types: different shapes and size, match all you needs

B. Good Capacity: good material decides its good capacity

C. Customized: customized shape or size are available

D. Exported to many countries: such as Korea,Morocco, Thailand,Philippine,Bangladesh etc.

◆Product Test

Tested Product:Jack Base Plate

Test Institute:Product Quality Supervision And Inspection Institute

Test Result:When arriving to 179.5KN, the thread rod bends.
