Product Details:
|
| Type: | Solid Or Hollow | Jack Nut: | 0.25kg/0.3kg/0.5kg/0.55kg/1.0kg |
|---|---|---|---|
| Surface: | Painted/E.G./H.D.G. | Packing: | Steel Pallet |
| Weight: | 1-5kg | Material: | Q235 |

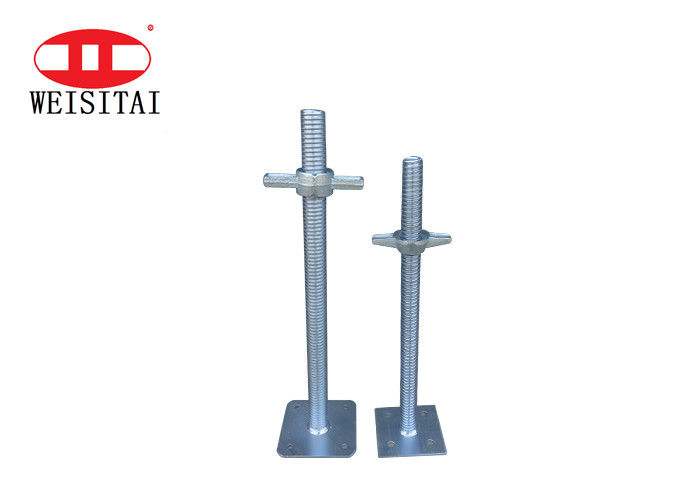

Scaffolding Support Hollow and Solid Jack Base
◆Product Overview
With various size, its compressive strength is from 85.87KN to 236.1KN. Also different surface treatment(self color, painted, electro galvanzied, HDG)and color are available.
Scaffolding jack base locates in the bottom of the standards, can provide adjustment for variations in ground levels, it can be used with most types of system scaffolding.
◆Product Parameter
| Jack Base | ||
| Picture | Tube diameter | 35/38mm etc, Customized Diameter is OK |
 |
Tube Length | 600/760mmmm etc, Customized Length is OK |
| Base Plate Size | 120*120*5mm 150*150*mm etc,Customized Size is OK | |
| Jack Nut | Various Shape and weight | |
| Application | Scaffolding Jacks locate in the bottom of the standards, they provide adjustment to cope with variations in ground levels, . | |
◆Product Advantage
1.Safe: with various size, our jack base could load from 8-23tons and even more
2.Various mateiral : Q235,Q345 etc, from expensive material to cheap material
3.Customized: Special Size or shape are available
4.Adjustable: the length could be from 100-1000MM
5.We can produce the sizes as per your drawing
