Hot Dipped Galvanized Cuplock Scaffolding Bottom Cup Q345

Hot Dipped Galvanized Scaffolding Bottom Cup Cuplock Scaffolding Parts

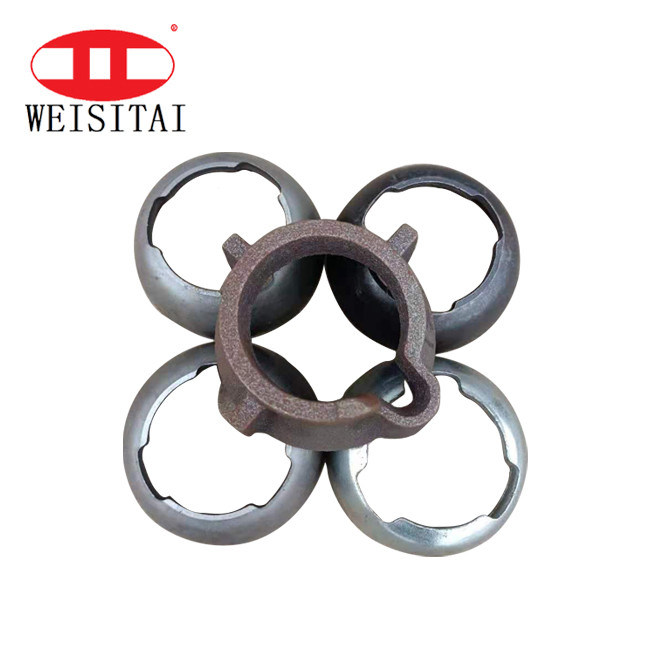

◆Scaffolding Bottom Cup Overview

Cuplock scaffolding system is a multi-purpose system scaffold, suitable for access and formwork support in all types of construction of building & civil engineering projects.The locking node is formed by two cups, a fixed lower cup which is welded to the vertical member at every 500mm intervals and a sliding upper cup. First the forged blade ends of the horizontal member are connected loosely but safely to the lower cup.

The scaffolding bottom cup is a bowl shaped bowl buckle body, the end away from the bowl buckle is provided with a sleeve for fixedly connecting the bowl buckle body and the vertical rod, the vertical rod is a circular tube, and its outer wall is provided with a concave structure, the bowl buckle body and the sleeve are sleeved on the vertical rod, the inner wall of the sleeve is provided with a protrusion, which extends into the concave structure and is tightly matched with the concave structure; The concave structure is two or more notches arranged in pairs, the two notches arranged in pairs are symmetrical about the central axis of the vertical rod, the protrusion is a point protrusion extending into the notch and tightly matched with the notch, and the number of protrusions and notches is equivalent; The concave structure is an annular groove, and the protrusion is an annular protrusion extending into the annular groove and tightly matched with the annular groove.

◆Scaffolding Bottom Cup Parameter

Accessories	Bottom cup
Material	Q235 Steel
Finish	Natural,Galvanized,HDG
Color	Original Self Color, Silver or golden color
size	48.3mm
weight	0.2kg
craft	Pressed
Application	For Cuplock system connection

◆Scaffolding Bottom Cup Advantage

1. The scaffolding bottom cup has the advantages of simple structure, novel and reasonable design and easy installation

2. The scaffolding bottom cup is fixedly connected to the vertical pole by setting a protrusion on the inner wall of the sleeve, and the protrusion extends into the interior of the concave structure on the vertical pole, and the protrusion extends into the interior of the concave structure and cooperates with the concave structure. This connection method is firm, easy to operate, saves a lot of time and has high production efficiency, It is convenient for popularization and application, avoids the use of a large number of welding processes, saves a lot of operation time, and saves a lot of manpower and material resources.

To sum up, the scaffolding bottom cup has the advantages of simple structure, convenient use, firm connection with the vertical rod, easy installation, saving a lot of operation time, improving production efficiency, good use effect and easy popularization and use.
