Galvanized Adjustable Steel Metal Scaffolding Parts For Prop System

Galvanized Adjustable Scaffolding Prop System Steel Scaffolding Prop Parts

◆Scaffolding Steel Prop Overview

Adjustable steel propis a kind of support component widely used in vertical structural support. It can adapt to the vertical support of floor formwork of any shape. Its support is simple and flexible, easy to install, and is a support component integrating economy and practicality. It is a formwork support system with low cost and convenient construction. It shows its advantages in civil buildings, especially in the construction of high-rise buildings.

◆Prop Cup Nut Advantage

1.The structure of steel prop is simple,so it is easy to assemble and disassemble.
2.The inner tube can extend and shrink in the outer so that steel prop is adjustable.It also can be adjusted according to the required height.
3.The steel prop can be reused.Even though it is out of work,the material can also be recycled.
4.Steel prop can be adjusted according to the different height on the buildings.

◆Scaffolding Steel Prop Parameter

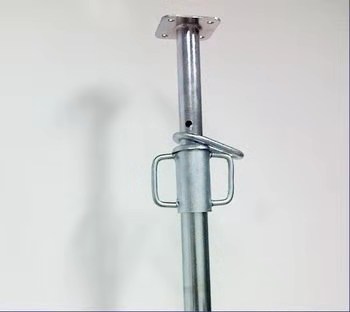

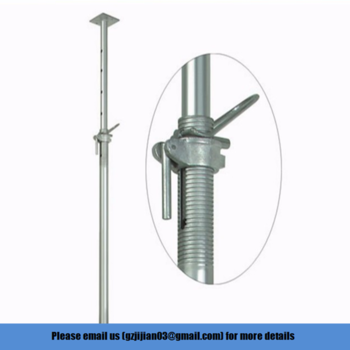

Steel prop is mainly made of bottom plate,outer tube,inner tube,sleeve&nut pin,top&bottom plate and the accessories of folding tripod,head jack.The structure is simple and flexible.

1.Heavy duty steel shoring props

MIN	MAX	INTERNAL TUBE	EXTERNAL TUBE	picture
1.8m	3.2m	48mm*2.0mm	60mm-2.0mm
2.1m	3.4m	48mm*2.0mm	60mm-2.0mm
2.2m	4.0m	48mm*2.0mm	60mm-2.0mm
2.4m	3.9m	48mm*2.0mm	60mm-2.0mm
3.5m	4.0m	48mm*2.0mm	60mm-2.0mm
3.0m	5.0m	48mm*3.5mm	60mm-3.5mm

2.Light duty steel shoring prop:

MIN	MAX	INTERNAL TUBE	EXTERNAL TUBE	Picture
1.6m	3.0m	40mm*2.0mm	48mm*2.0mm
		48mm*2.0mm	56mm*2.0mm
1.8m	3.5m	48mm*2.0mm	48mm*2.0mm
		48mm*2.0mm	56mm*2.0mm
2.0m	3.5m	48mm*2.0mm	48mm*2.0mm
		48mm*2.0mm	56mm*2.0mm
